Steet Lights Wireless Control 2
1. Background introduction
This is a lighting hybrid wireless control project in Mexico highway.
System consists of 5 groups.
Group 1 and group 2: sensor wireless control 30 luminaries ON-OFF
Group 3 and group 4: sensor wireless control 18 luminaries ON-OFF
Group 5: sensor wireless control 9 luminaries ON-OFF
Control distance is less than 2km for each group.
Each group, master control all slaves ON-OFF at the same time.
2. Parameter requirements:

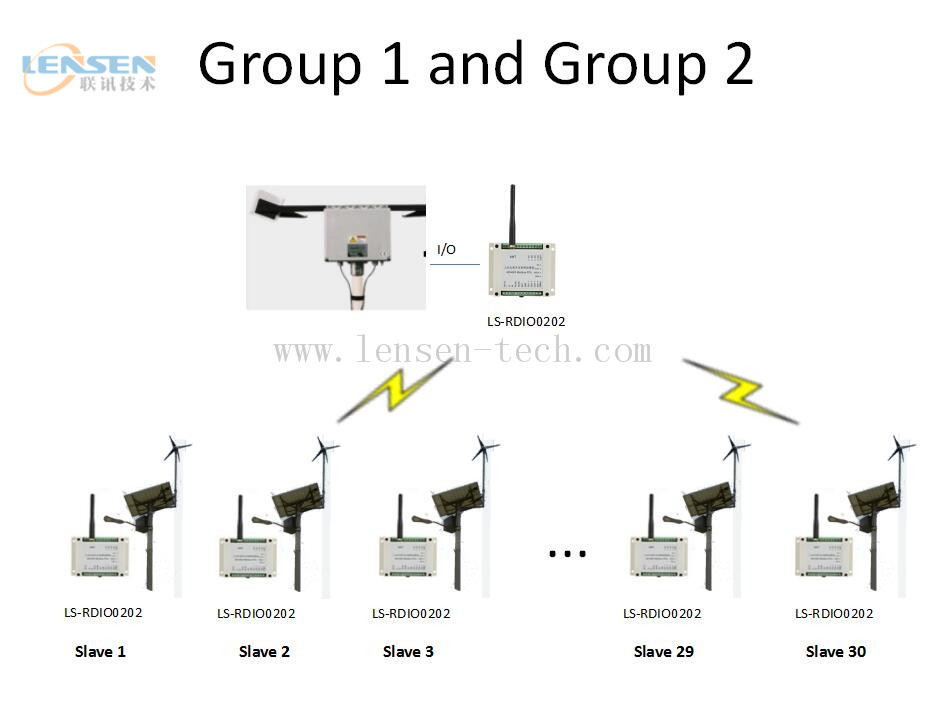

Group 1 and Group 2:
Master DI1 controls all 30 slaves’ DO1 at the same time
Master DI2 controls all 30 slaves’ DO2 at the same time
We set Group 1 with ID 1, channel 1
Group 2 with ID 4, channel 4

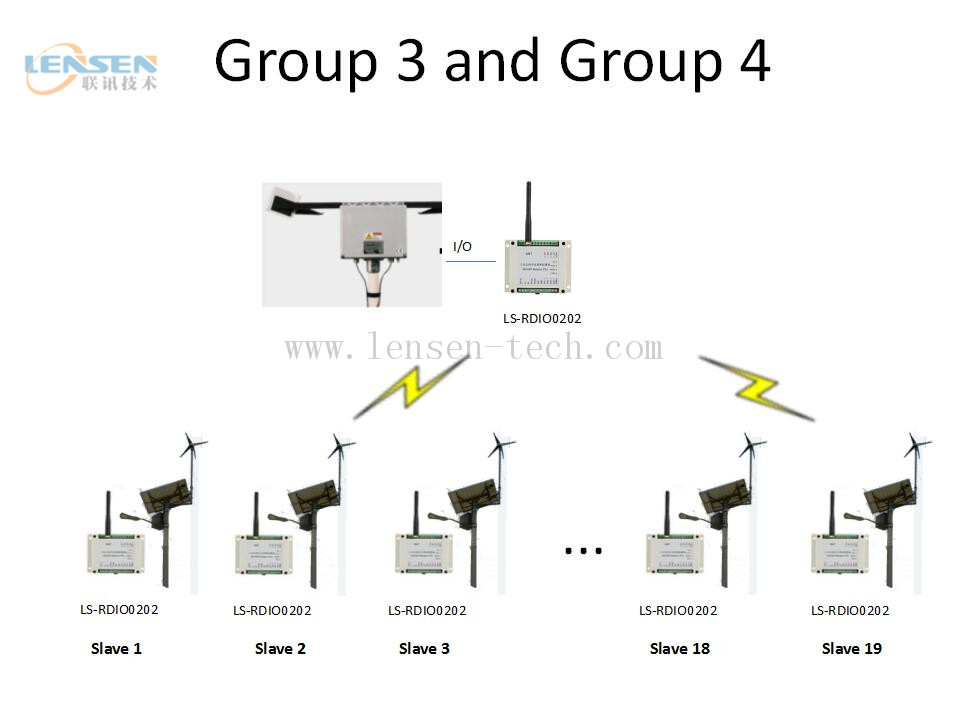

Group 3 and Group 4,
Master DI 1 controls all 18 slave’s DO1 at the same time.
Master DI 2 controls all 18 slaves’ DO2 at the same time.
We set Group 3 with ID 8, channel 8
Group 4 with ID 15, channel 15

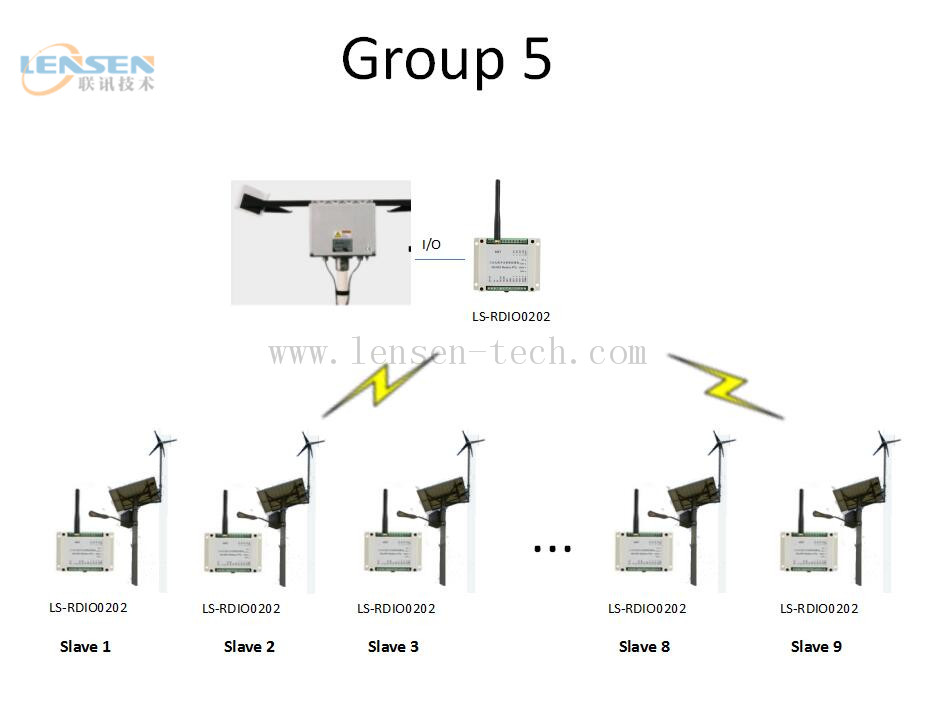

Group 5,
Master DI 1 controls all 9 slaves’ DO1
Master DO 2 controls all 9 slaves DO2
We set Group 5 with ID 15, channel 15
3. Conclusion:
There are 5 groups in this system, each group we use different ID and different channel. 5 masters can control all different slaves correctly without interference.
