Water tank Wireless Monitoring

Features

Switches ON the pump when the water in the overhead tank goes low level.
Switches OFF the pump when the water in the overhead tank reaches high level.
DI, DO, Power and Communication LED Lights.
Wireless connection, no need to switch ON/OFF the pump manually.
No more overflow thus saving water electricity & manpower.
Easy installation. Can do it by yourself.
No communication fee.

Hardware needed:
1. 24V DC Power supply (12V customize)
2. Float switch (with high and low level)
3. LS-RDIO0202 (with antenna)
4. Pump
5. Solid state relay

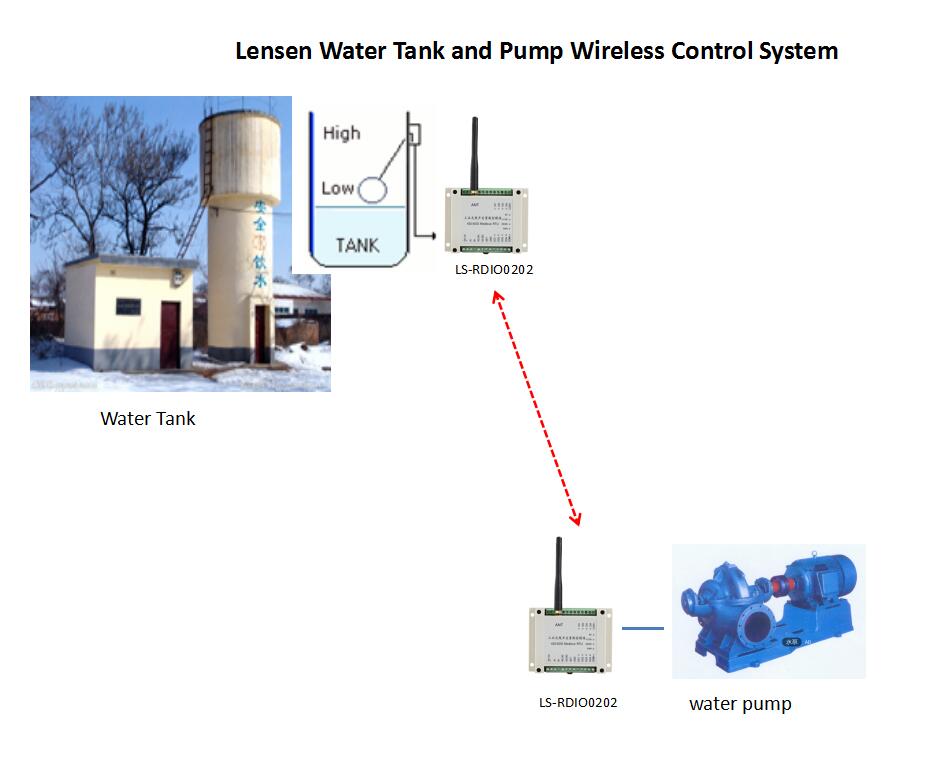

System diagram
When water level low, pump ON. When water level high, pump OFF
pump controller.jpg

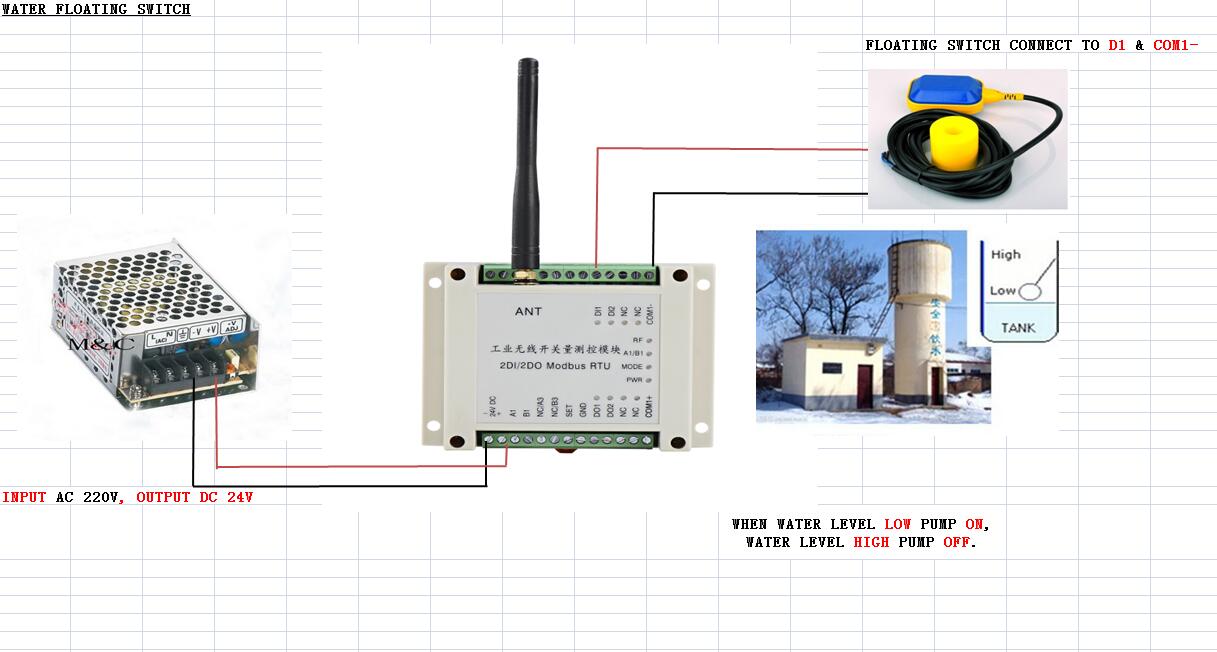

How to connect tank side
tank side.jpg

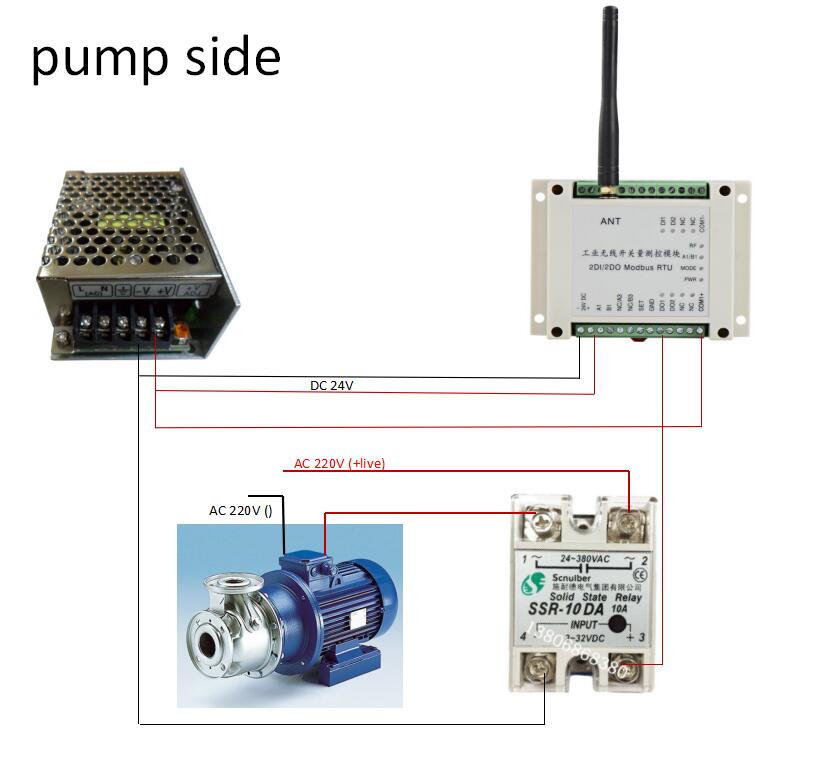

How to connect pump side
pump side.jpg

About LS-RDIO0202
2 controllers should set with the same ID
2 controllers should set at the same channel
1 controller sets as master, 1 controller sets as salve
