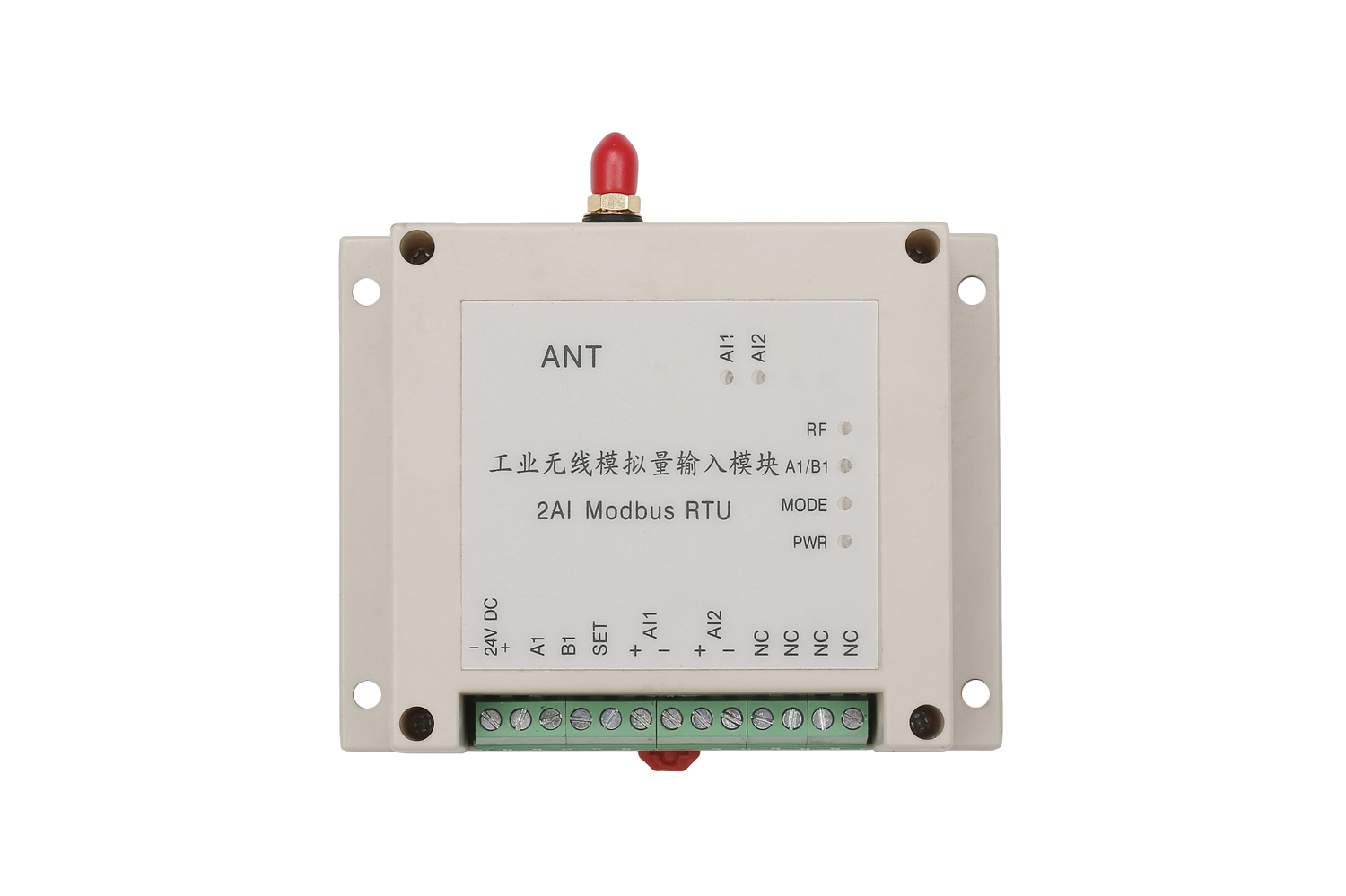

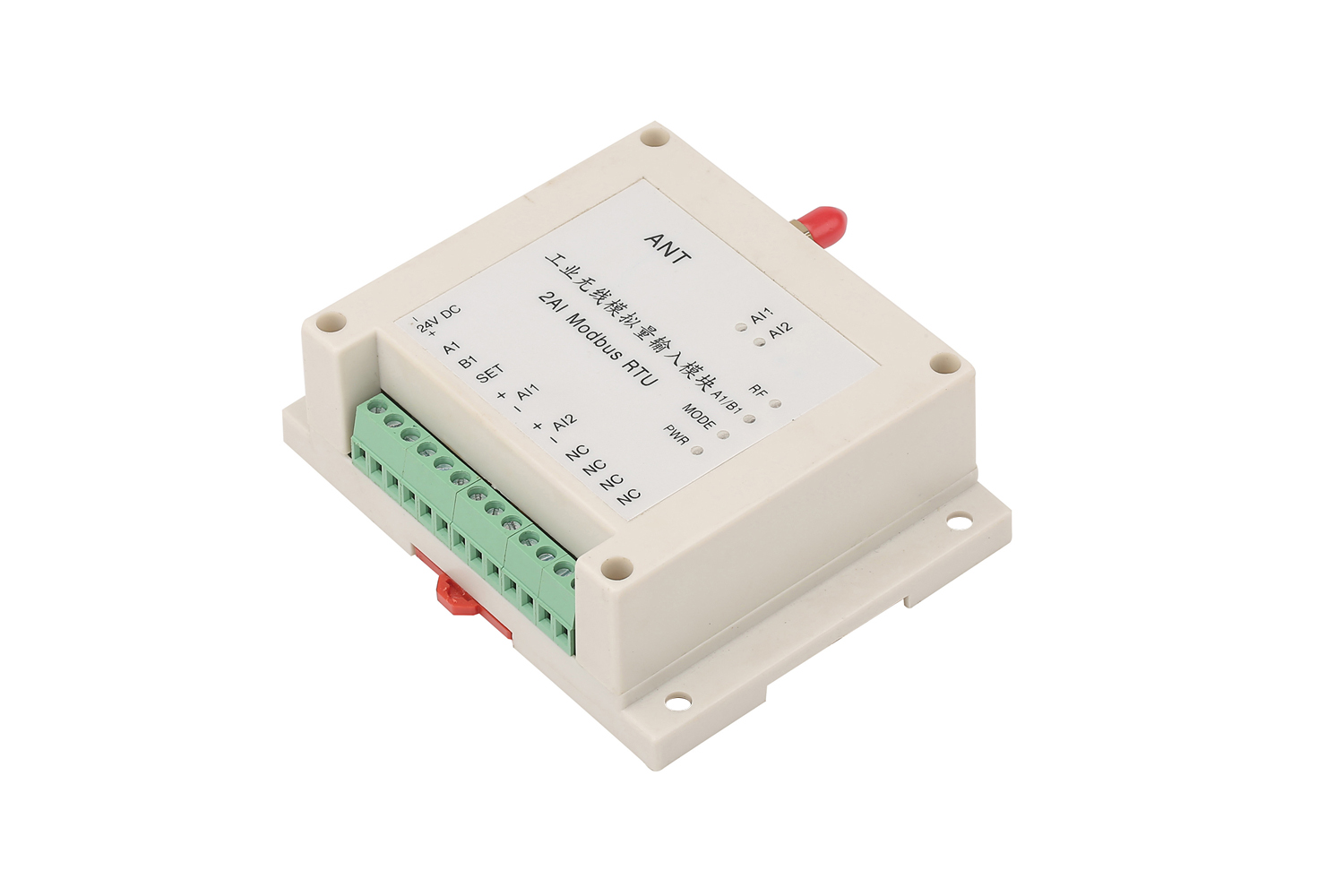

ProductNameLS-RAI02

● 2 analog input
● To collect 0-5V, 4-20mA signal
● Not need internet, no third party cell, no monthly fees
● Fast installation and easy setup
● Control distance covers 2-3km
  • Parameter list
  • Download
  • Application



433MHz or 450MHz or 470MHz
Power output
100mW（600m）、1000mW(3000m)
Products
2AI
Input type
4-20mA or 0-5V or 0-10V
Output type
none
 Resolution ratio
24 bit
Accuracy
±0.02%
Power supply
9-36V DC    usually use 24V DC
Interface
RS-485
Channel No.
16ch default, can program via DIP switch
Antenna
Sucker antenna with 1.5m cable
Working temperature
-35℃~+75℃ industrial
Working humidity
10%～90% relative humidity, no condensation
Dimension
2AI、4AI
115×90×40(mm)
2AO、4AO
Fix way
Standard 3.5 inch industrial guild rail
