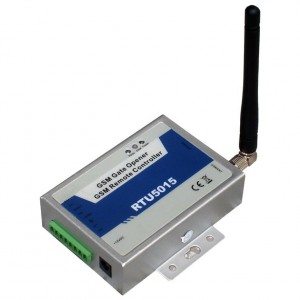

ProductNameLS-GSM-RTU5015

● Multiple applications(gates, bollards, barriers, garage doors, access doors)
● Secure – Using caller ID for identification, unknown callers are ignored;
● Can be operated from anywhere, no distance limit;
● Based on GSM Network, applied to many applications.
● Up to 64 authorized phone numbers can be configured;
● Add or remove users by SMS Text command;
● No need to provide a remote control for different users;
● Up to 64 authorized phone numbers can be configured;
  • Parameter list
  • Download
  • Application



Parameter item

Reference scope

DC Power supply

Standard adapter: DC12V/1A

Power consumption

12V input  Max. 50mA/Average 50mA

Frequency range

Dual band 900/1800 MHz or 850/1900Mhz

SIM Card

Supporting 3V SIM Card

Antenna

50 Ω SMA Antenna interface

Temperature range

-20-+60 °C

Humidity range

Relative humidity 90% (condensation free)

Relay Rating

3A/240VAC

Exterior dimension

110mm*90mm*40mm

Net Weight

600 g
