Parameter

Power output:

1W

Power supply：

9V-30V (choose 24V DC or 12V DC)

Control distance:

3km  or  (1km version)

Baud rate:

1200bps

Receiving sensibility:

-123dBm@1200bps, -118dbm(9600bps)

Networking

Networking:

Point to point and point to multipoint

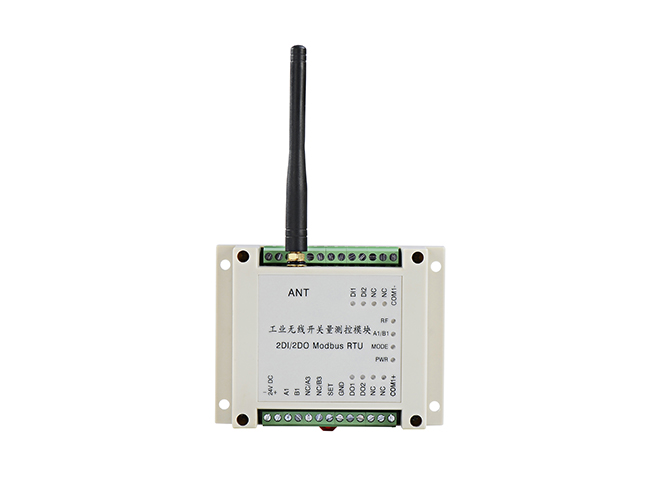

Port Description

Input:

2 digital input

Output:

2 relay output, contact AC250V/5A，DC30V/5A

Communication port

RS485 (wireless RS485 customize)

Current

Transmit current:

<600mA   (or 40mA version)

Receiving current:

<50mA    (or 20mA version)

General

Frequency:

433MHz,400, 450,470 or other band

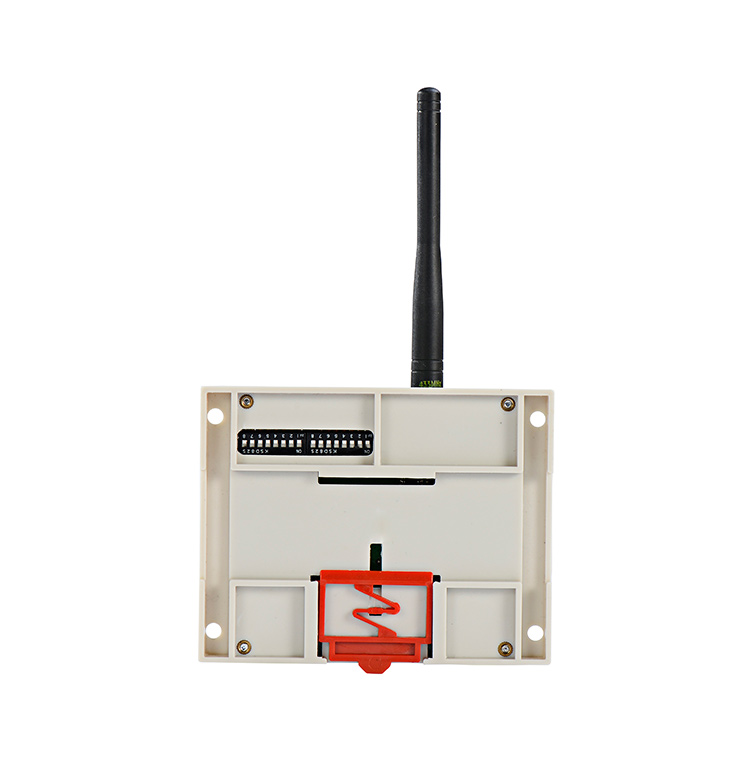

Channel No：

8channels, can change via DIP switch

Physical Properties

Dimension:

115×90×40(mm)

Weight:

500g

Antenna Connector:

SMA，vehicle antenna with 1.5m cable

Temperature:

-35℃~+75℃( industrial)

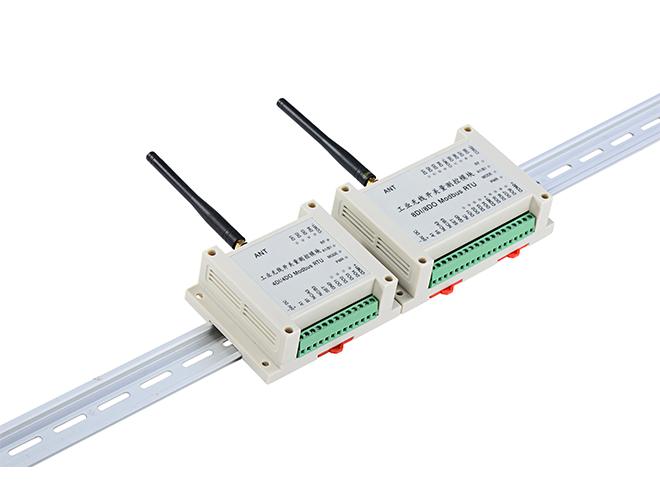

Mounting method:

Standard 3.5 inch industrial guild rail
