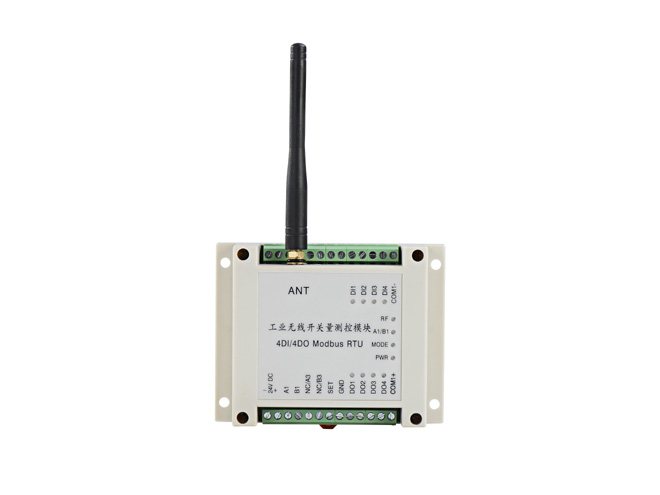

ProductNameLS-RDIO0404

● 4DI 4DO wireless PLC, Modbus RTU
● Transparent I/O System, no programming required
● Not need internet, no third party cell, no monthly fees
● You have full control over your own carrier
● Real time status feedback from the remote site
● Fast installation and easy setup
  • Parameter list
  • Download
  • Application



Parameter

Power output:

1W

Power supply

9V-30V (choose 24V DC or 12V DC)

Control distance:

3km  (or 1km version)

Baud rate:

1200bps

Receiving sensibility:

-123dBm@1200bps, -118dbm(9600bps)

Networking

Networking:

Point to point and point to multipoint

Port Description

Input:

4 digital input

Output:

4 relay output, contact AC250V/5ADC30V/5A

Communication port

RS485 (wireless RS485 customize)

Current

Transmit current:

<600mA   (or 40mA version)

Receiving current:

<50mA    (or 20mA version)

General

Frequency:

433MHz,400, 450,470 or other band

Channel No

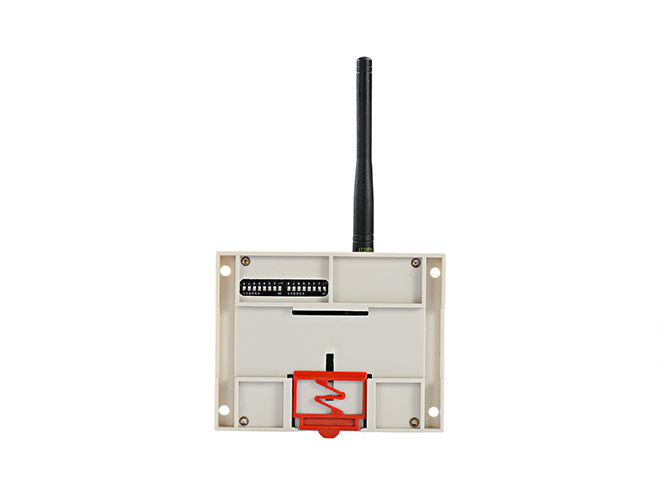

8channels,can change via DIP switch

Physical Properties

Dimension:

115×90×40(mm)

Weight:

500g

Antenna Connector:

SMAvehicle antenna with 1.5m cable

Temperature:

-35℃~+75℃( industrial)

Mounting method:

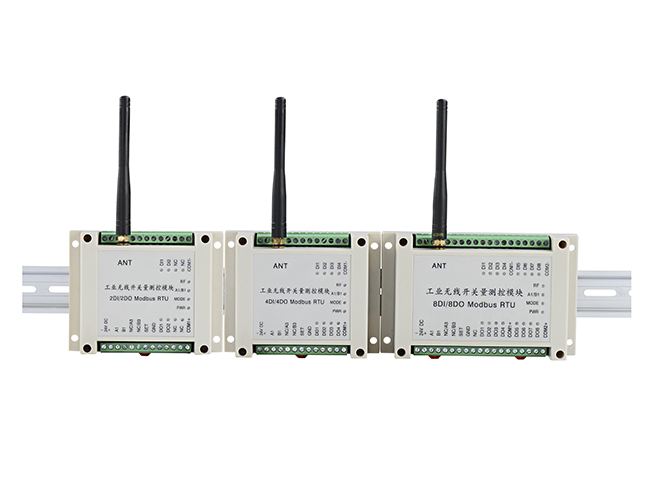

Standard 3.5 inch industrial guild rail
