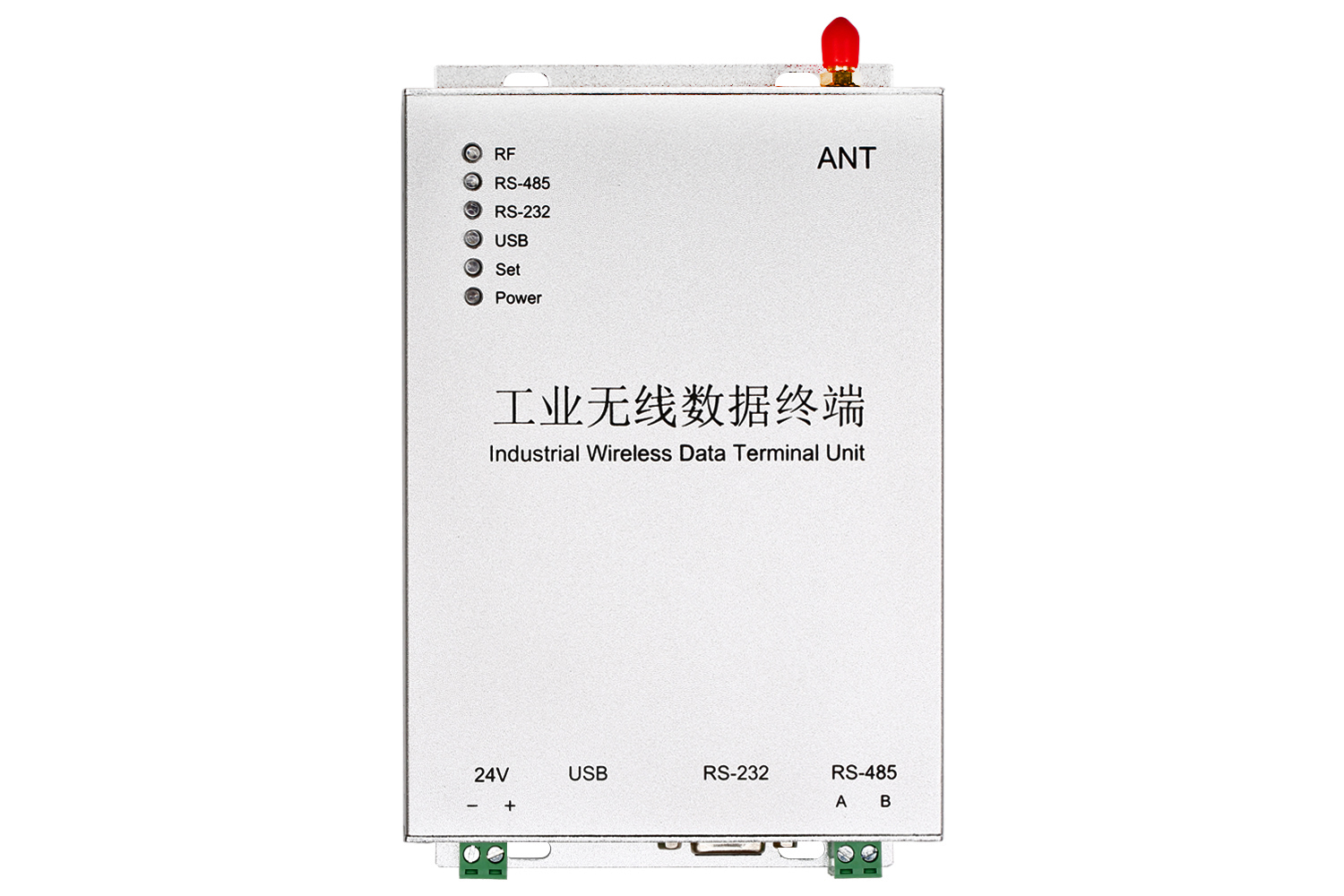

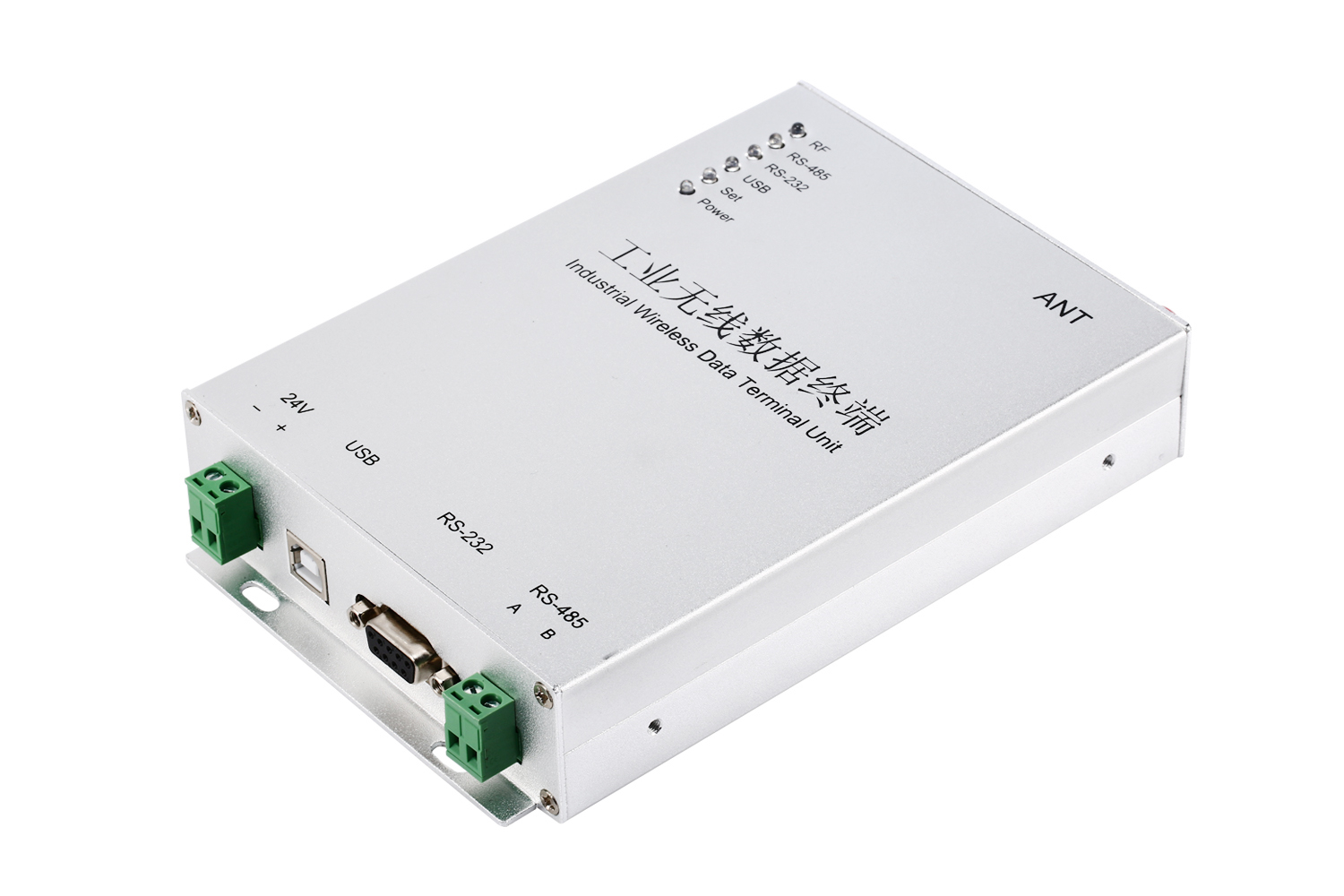

ProductNameLS-R324

● Power output:1W
● Frequency:433MHz free band or other customize
● Power Supply:24V DC
● Distance:2km-3km
● Interface:RS232,RS485,USB
  • Parameter list
  • Download
  • Application

Parameter
Power output:
1W
Distance:
3km@1200bps; 2km@9600bps
Baud rate:
1200/2400/4800/9600/19200bps
Channel Space:
1MHz(default)  12.5/25KHz(customize
Bandwidth
<25KHz
Receiving Sensibility:
-123dBm@1200bps, -118dbm(9600bps)
Compatible with
LS-U series, LS-R series and LS-RDIO series, LS-RAIO series
Power
Power Supply:
5V DC
Transmitting current:
<600mA
Receiving current:
<50mA
Sleep current:
<1mA
General
Modulation:
FSK/GFSK
Frequency:
433MHz, or 400MHz, 450MHz, 470MHz or other
Data format:
8N1, 8EI, 8O1 programmable, or other customize
Channel No.
8(default),16/32/64(customize)
Interface:
RS232/RS485/USB
TX RX swift time
<10ms
Physical Properties
Dimension:
175*115*32mm
(exclude antenna connector and pin terminal)
Weight:
230g
Antenna connector:
50Ω,  SMA
Working temperature:
Industrial:-40~+85
